In industries where hygiene, safety, and precision are critical—such as pharmaceuticals, food processing, dairy, and beverages—Tri Clamp fittings play a crucial role in ensuring sanitary, leak-proof, and easily cleanable pipeline connections. At SUN STEEL & PIPE FITTINGS CO, we specialize in the manufacturing and supply of Tri Clamp fittings across India, offering a wide range of sizes, dimensions, and weight specifications to meet both standard and custom requirements.
SUN STEEL & PIPE FITTINGS CO is a reputed manufacturer and supplier of Long Stub Ends in India, offering a wide range of dimensions and materials to meet your project’s exact requirements.
What Are Tri Clamp Fittings?

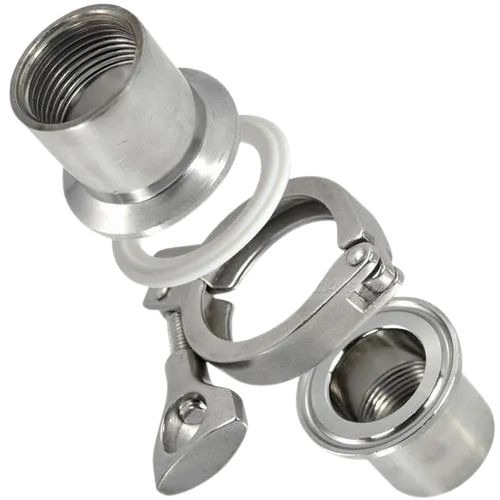

Tri Clamp fittings, also known as Tri Clover fittings, are a type of sanitary connection widely used in process piping systems. These fittings consist of three main components: two ferrules, a gasket, and a clamp. When tightened together, they create a strong, secure seal that’s easy to disassemble for cleaning or maintenance.
These fittings are ideal for clean-in-place (CIP) and sterilize-in-place (SIP) systems, making them a preferred choice in:
- Pharmaceutical & Biotech Plants
- Dairy & Beverage Industries
- Food Processing Units
- Water Filtration & RO Plants
Cosmetics & Chemical Sectors
Tri Clamp Fittings – Sizes & Dimensions (Standard Range)
We manufacture and supply Tri Clamp fittings in a variety of sizes to suit different piping and tubing systems. The most commonly used sizes range from:
- ½” to 6” (15mm to 150mm)
- Available in both DIN, ISO, SMS, and IDF standards
- Ferrule lengths: Short weld ferrule, long weld ferrule, and custom lengths
- Clamp types: Single-pin, double-pin, heavy-duty, hinged, and safety clamps
Compatible tubing sizes: Schedule 10, 40, and thin-wall tube (based on hygienic standards)
Typical Tri Clamp Fitting Dimensions
Size (Inch) | Tube OD (mm) | Ferrule OD (mm) | Ferrule Length (mm) | Clamp Type | Weight (Approx.) |
½” | 12.7 | 50.5 | 21.5 | Single-pin | 0.12 kg |
1” | 25.4 | 50.5 | 21.5 / 34 | Single-pin | 0.20 kg |
1.5” | 38.1 | 50.5 | 21.5 / 34 | Double-pin | 0.25 kg |
2” | 50.8 | 64 | 28 / 38 | Double-pin | 0.35 kg |
2.5” | 63.5 | 77.5 | 30 / 45 | Heavy-duty | 0.50 kg |
3” | 76.2 | 91 | 32 / 50 | Hinged | 0.65 kg |
4” | 101.6 | 119 | 40 / 55 | Hinged | 0.90 kg |
Materials & Finishes
At SUN STEEL, our Tri Clamp fittings are manufactured using:
- Stainless Steel 304 / 304L / 316 / 316L
- Optional electropolishing for pharmaceutical-grade use
- Smooth ID/OD finish (Ra ≤ 0.8 µm) for hygienic applications
- Gaskets available in EPDM, Silicone, Viton, PTFE (FDA compliant)
All fittings are CNC machined and polished for dimensional accuracy, cleanability, and visual finish.
Why Choose SUN STEEL & PIPE FITTINGS CO?
✅ Precision Manufacturing
Our fittings are designed to meet ASME BPE, 3-A, and DIN sanitary standards. Each piece undergoes leak testing and surface roughness inspection to ensure top-notch quality.
✅ Complete Range & Customization
We stock and manufacture the full spectrum of Tri Clamp components, including ferrules, elbows, tees, reducers, valves, and caps. Custom dimensions and heavy-duty assemblies are also available.
✅ Trusted by India’s Top Industries
Our Tri Clamp fittings are widely used in Hyderabad, Pune, Ahmedabad, Mumbai, and Chennai, serving top pharmaceutical and F&B brands.
✅ Documentation & Certification
We provide full documentation including Material Test Certificates (MTCs), FDA-compliant gasket certificates, and third-party inspection reports upon request.
Applications
- Dairy processing pipelines
- Brewery & distillery clean systems
- RO & WFI water lines
- API manufacturing & cleanrooms
Cosmetic-grade mixing and transfer lines
Order Your Tri Clamp Fittings from India’s Trusted Supplier
SUN STEEL & PIPE FITTINGS CO is a recognized name in sanitary process fittings. With precision engineering, reliable delivery, and customizable solutions, we are India’s go-to source for Tri Clamp fittings and components.
Conclusion:
Understanding TRI CLAMP FITTINGS SIZES, DIMENSIONS & WEIGHT is essential for choosing the right components in sanitary and hygienic processing systems. At Sun Steel & Pipe Fittings Co., we provide a comprehensive range of tri clamp fittings with accurate measurements and durable materials to suit diverse industry needs. Whether you’re in the food, dairy, or pharmaceutical sector, our products ensure leak-proof connections and long-term performance. Contact us today to get detailed specifications or place your order!
